Brand Name: SANHENG
Model Number: SH-55877
Place of Origin: Zhejiang, China (Mainland)
Refrigeration Oil Separator Price (SH-55877)
Product Description
| Product | Oil Separator Price |
| Model | SH-55877 |
| Brand | SANHENG |
Specifications
The oil separator is capable of separating the oil from the refrigerating gas mixture so as to improve the performance of refrigerating air conditioning system and save energy. Its function enters the inlet of the oil separator from the compressor refrigerant and oil mixture, this mixture flows through a filter and a baffle device, making the oil particles aggregate and drop to the bottom of the oil separator. The refrigerant gas will goes through the outlet, and enter the condenser under oil-less status when the filter separates the remaining oil particles from the gas. The oil of the refrigerant aggregates at the bottom of the oil separator, and a needle valve operated by a floating ball is opened to let oil return to the compressor. Since the pressure of the oil separator is higher than the pressure of the crankcase, the oil can quickly return to the compressor. When the oil level drops, the needle valve is closed to prevent the refrigerant gas from returning to the compressor. The oil separator system is mostly installed in the multiple compressor racks of supermarkets and air conditioning, system with long refrigerant lines, system with problems of internal oil return, ultra-temperature system and system using HCFC, HFC and relative lubricants.
Features
Hermetical construction with steel oil-return system
(1/4 or 3/8” SAE connection)
Dependable shut-off system of floating valve
Solid copper connection
Anti-corrosive spurting model
Maximum operating pressure: 3.1Mpa

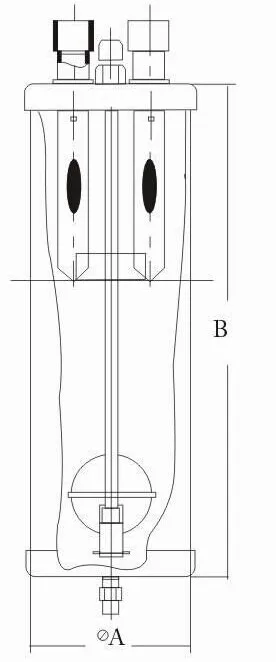

Specification
Type |
Connection ODF (in) |
Valve body size |
|
A(in) |
B(in) |
||
SH-55824 |
1/2 |
4.00 |
10.75 |
SH-55855 |
5/8 |
4.00 |
13.20 |
SH-55877 |
7/8 |
4.00 |
15.00 |
SH-55889 |
1-1/8 |
4.00 |
17.72 |
SH-559011 |
1-3/8 |
4.00 |
18.70 |
SH-569011 |
1-3/8 |
6.00 |
19.00 |
SH-569213 |
1-5/8 |
6.00 |
19.00 |
SH-569417 |
2-1/8 |
6.00 |
19.50 |
Type |
Connection ODF (in) |
Valve body size |
|
A(in) |
B(in) |
||
SH-5201 |
1/2 |
4.00 |
9.53 |
SH-5202 |
5/8 |
4.00 |
13.46 |
SH-5203 |
7/8 |
4.00 |
16.22 |
SH-5204 |
1-1/8 |
4.00 |
17.40 |
SH-5205 |
1-3/8 |
4.00 |
18.58 |
SH-6202 |
1-1/8 |
6.00 |
15.16 |
SH-6203 |
1-3/8 |
6.00 |
16.42 |
SH-6204 |
1-5/8 |
6.00 |
19.42 |
SH-6205 |
2-1/8 |
6.00 |
18.58 |

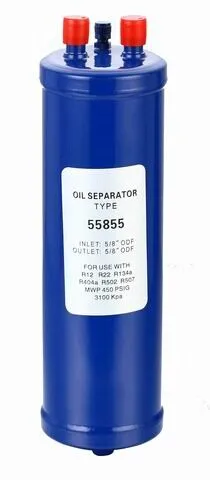

Photos
About us
Ningbo Sanheng Refrigeration Control Co.,Ltd is an refrigeration parts manufacturer from China,which specializes in manufacturing HVAC&Refrigeration parts.
Our aim is to supply the most suitable refrigeration unit parts for refrigeration unit manufacturers and distributors.
